KIGIS iPAS SE | UWB Proximity Alert System

KIGIS iPAS SE

Intelligent Proximity Alert System based on UWB technology

KIGIS iPAS SE is an advanced proximity and collision prevention system that uses Ultra Wideband (UWB) technology to measure the distance and position between vehicles, pedestrians and infrastructure with extreme accuracy. The system alerts drivers and pedestrians in good time, helping to prevent collisions and dangerous situations in industrial environments.

Developed for maximum safety in the workplace

iPAS SE increases safety in environments where vehicles and people move simultaneously, such as warehouses, production halls, construction sites, ports and mining sites.

• Prevention of vehicle-pedestrian and vehicle-vehicle collisions
• Reliable detection, independent of visibility, light or noise
• Suitable for indoor and outdoor applications

Highly accurate UWB detection

Thanks to Symmetric Double-Sided Two-Way Ranging (SDS-TWR) and Angle of Arrival technology, iPAS SE measures not only distance, but also direction.

• Measures distance and angle between tags
• Detection range up to 30 metres
• Adjustable resolution up to 0.1 metres
• More reliable and accurate than KIGIS iPAS

Smart warnings for drivers and pedestrians

When a danger zone is entered, the system activates visual, acoustic and vibration alarms.

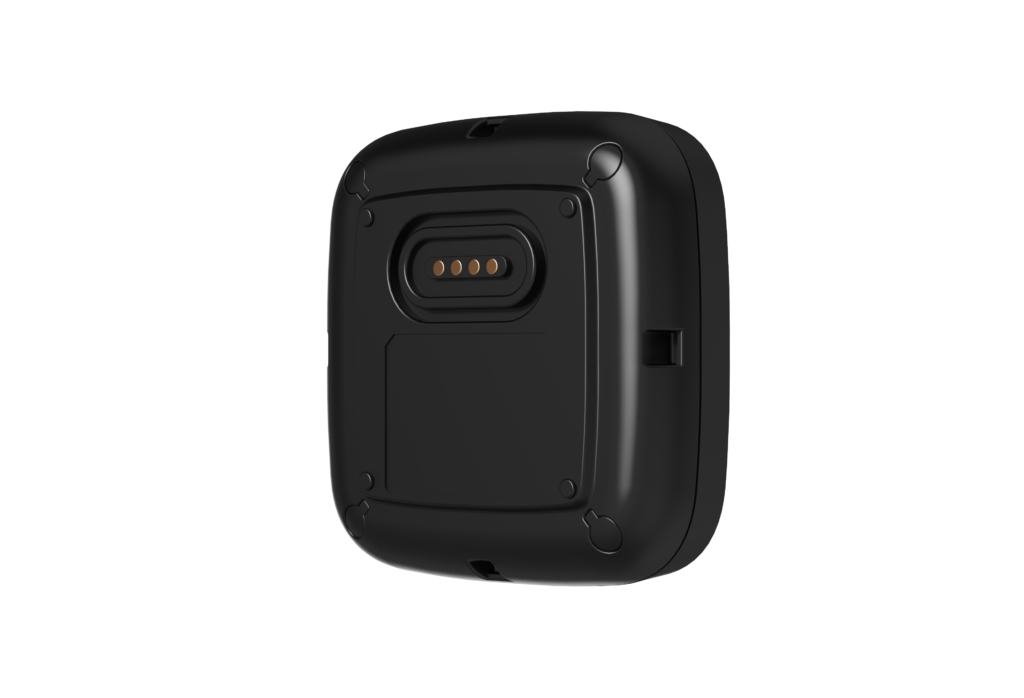

• Warnings for pedestrians (PT tags)
• Warnings for drivers via Indicator Plus (IND+)
• Multiple alarm types: LED, sound, vibration and voice
• Fully configurable per application

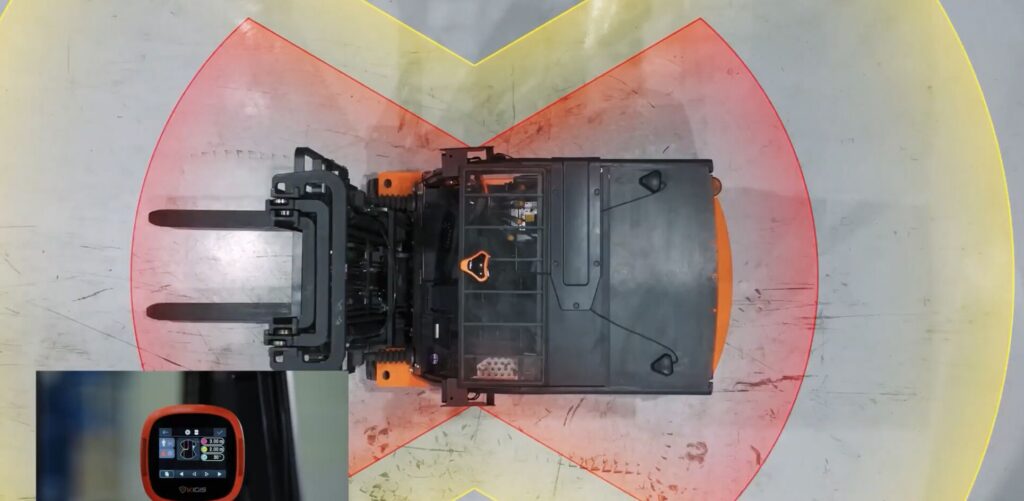

Static & dynamic safety zones (E-Mode)

With Extended Mode (E-Mode), safety zones can be dynamically adjusted based on vehicle movement and direction.

• Dynamic design of danger and warning zones
• Higher accuracy at intersections and blind spots
• Requires Vehicle Tag + E-Mode Tags (EMT)
• Significant improvement compared to KIGIS iPAS

Versatile applications

iPAS SE supports multiple safety scenarios:

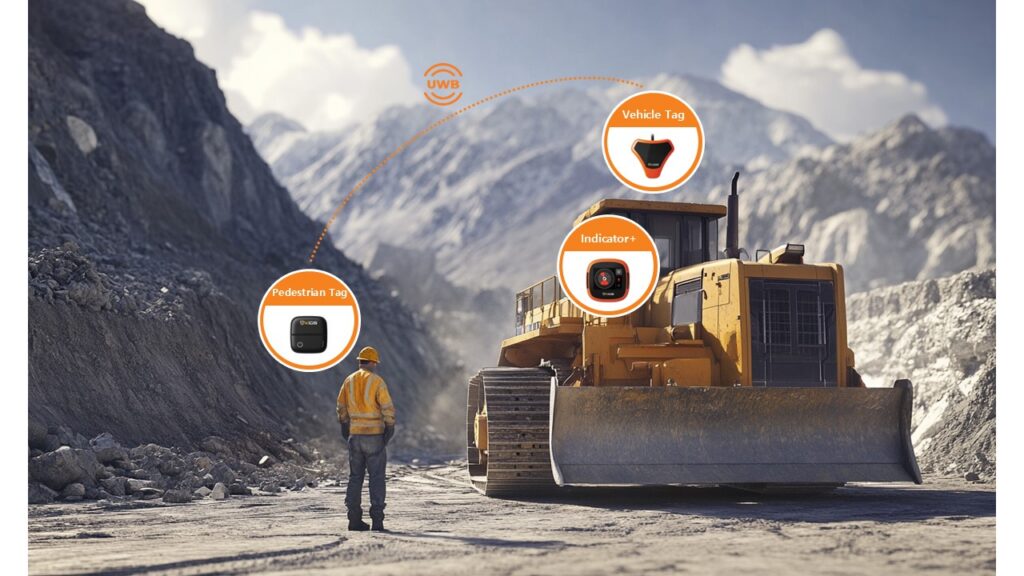

• Vehicle ↔ pedestrian warning
• Vehicle ↔ vehicle warning
• Blind spot detection (vehicle ↔ zone)

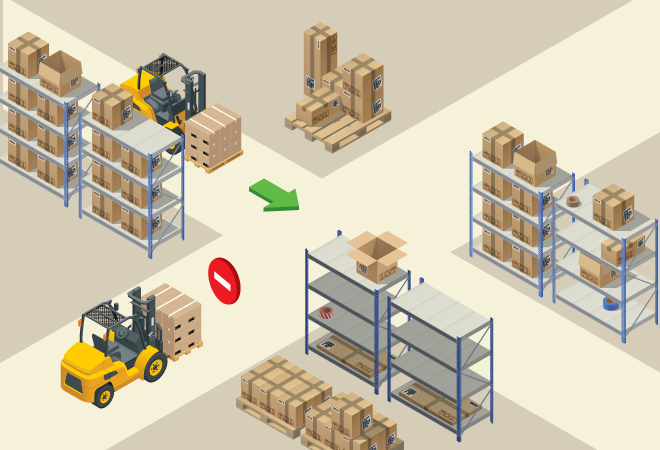

• Intersection protection (zone ↔ vehicle)
• Safety zones with automatic activation/deactivation

Easy configuration & system integration

The system is user-friendly and flexible in use.

• Configuration via PC tool and smartphone app
• Communication via UWB, CAN, RS-232 and Bluetooth
• Compatible with external safety systems
• Suitable for automation of light, sound and other signals

Key benefits of KIGIS iPAS SE

• Highly accurate UWB technology
• Distance and angle measurement
• Dynamic safety zones (E-Mode)
• Visual, acoustic and vibration alarms
• Detection up to 30 m with 0.1 m resolution
• Easy installation without calibration
• PC and smartphone configuration
• Suitable for vehicles, pedestrians and infrastructure
• Robust industrial design (IP65/IP67)
• Expandable and scalable system
